Pressfit holes on PCB

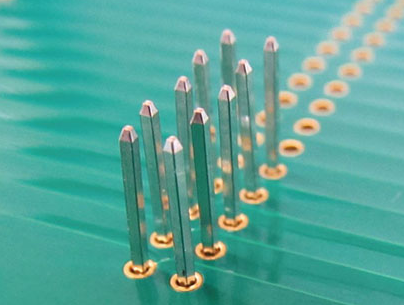

Pressfit holes in PCB

Pressfit holes are plated holes with tighter tolerance, which are used for through-hole components that are not soldered to the board.

To accommodate lead and hole to tightly fit together, the tolerances are well defined and more tight than standard.

The typical tolerances for the PTH depends on the type of connector, which is specified by the connector manufacturer.

Therefore it is of utmost importance that these tolerances are well defined in your PCB data and that the parameter “Press fit” is checked in the order details.
