Finish board thickness in PCB

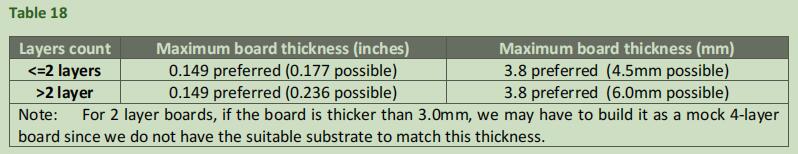

Finished overall board thickness can be measured from a PCB’s top layer to its bottom layer, including the solder mask and copper layers. This dimension is used for designing enclosures for the board. Do not forget to account for component height in your overall design. The maximum board thickness will be, as shown in Table 18 below.
