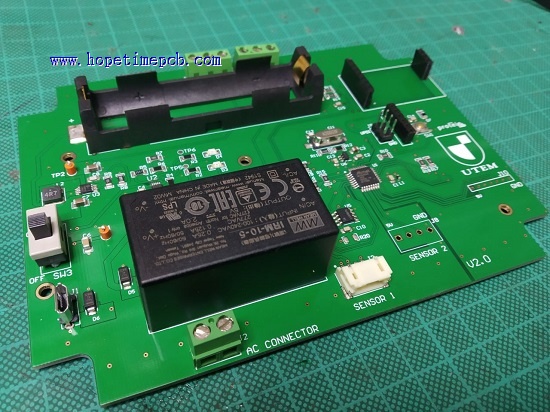

  • Prototype pcb assembly for LoRa IoT module
Prototype pcb assembly for LoRa IoT module

Prototype pcb assembly for LoRa IoT module

  • Product No.:202118155137
  • PCB board thickness:0.6MM,0.8MM,1.0MM,1.2MM,1.6MM,2.0MM,2.4MM
  • Layer count:1L.2L,4L,6L,8L,10L,12L,16L,18L,20L,24L,32L
  • PCB material:FR4,CEM,ROGERS,Mixed laminate ect
  • Copper thickness:0.5OZ,1OZ,1.5OZ,2OZ
  • Surface treatment:HASL LF,ENIG ect
  • Soldermask:Green,Black,Yellow,Blue ect
  • silkscreen:White,Black
  • D.K: 2.2 to 10.6
  • D.F:/
  • Min trace/gap:3mil
  • Online Inquiry

Prototype pcb assembly for LoRa IoT module

Product Description
Service:PCB Manufacturing / PCB assembly / components sourcing
Usage:
IoT devices collect, transmit and receive data using sensors, actuators, communications hardware, processors and other components. IoT devices can be controlled externally or perform intelligent actions on their own using the collected data. An embedded operating system, onboard software application and user interface is integrated with the hardware device. That’s why sometimes we call it “smart device”.

PCBA details:

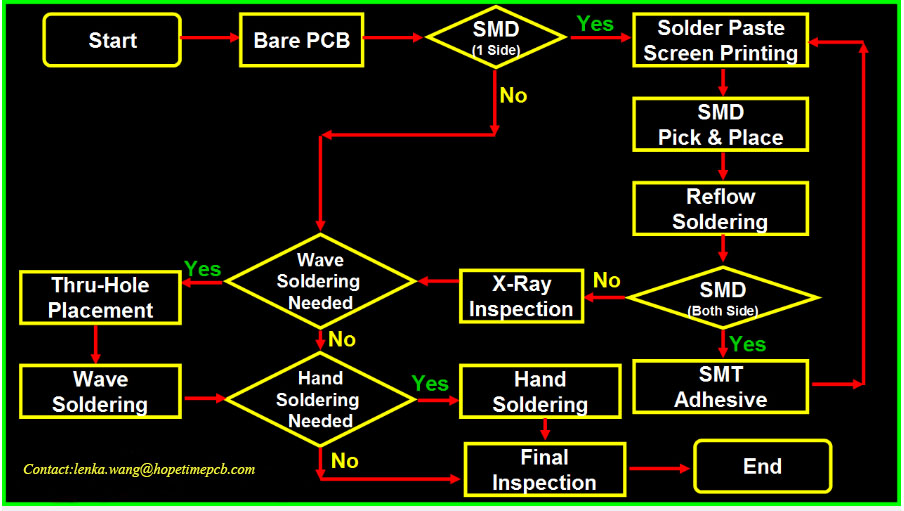

SMD for two sided boards or Thru-Hole Placement

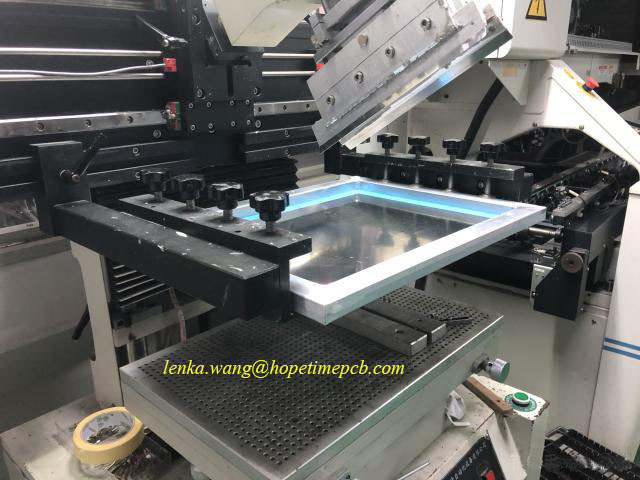

In this case,the side with the fewest and smallest components is stenciled and reflowed first. Once the board is out of the reflow oven it is stenciled on the second side, placed, and reflowed. The surface tension of metal is very high and holds everything in place. In factories with larger, more complex assemblies various bits of the board may be glue in place during the pick and place step to insure the component doesn’t move during reflow.




When the board comes to a mixing,Single-sided mixing or Double-sided mixing,Manual Soldering maybe required,The process is after reflow, a technician takes the board and manually solders any PTH (plated through-hole) components. In a larger production facility, the soldering of through-hole components may be done using a technique known as wave soldering, where the board is passed over a standing wave of molten solder, which adheres to component leads and any exposed metal on the board.



FAQ

*What service do you have?
Answer:We provide turnkey solution including PCB Clone,PCB fabrication,PCB Assembly,testing and other value-added service.

*What are the main products of your PCB/PCBA Services?
Answer:Medical PCBA / Telecom / Power supply / Led lighting / consumer electronics / Instrument equipment ect.

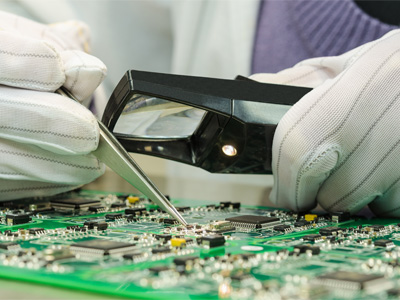

*Can we inspect quality during production?
Answer:We are welcome and transparent on each production process.

*How can you ensure our information being safe and not let third party find out our design?
Answer:We are willing to sign NDA file to follow the local law in your country and promise to keep our customers data in high confidential level.

*Do you have any minimum order quantity (MOQ)requirement?
Answer:We do not have MOQ requirement,We can support your projects stating from prototypes to mass productions.
