Products >> PCB Assembly >> PCBA Prototype

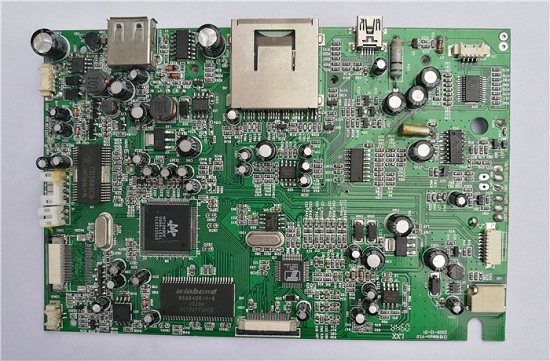

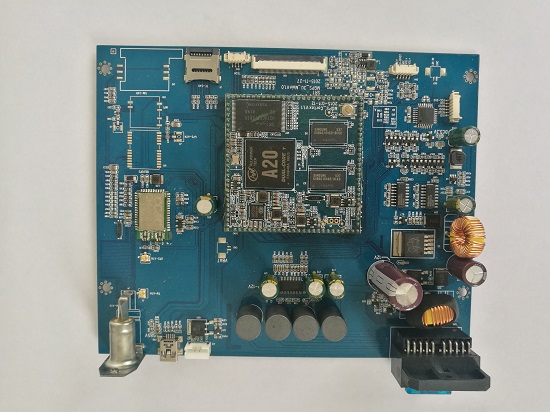

High quality PCB for soldering / prototype PCB assembly
- Product No.:2020831161923
- PCB board thickness:0.6MM,0.8MM,1.0MM,1.2MM,1.6MM,2.0MM,2.4MM
- Layer count:1L.2L,4L,6L,8L,10L,12L,16L,18L,20L,24L,32L
- PCB material:FR4,CEM,ROGERS,Mixed laminate ect
- Copper thickness:0.5OZ,1OZ,1.5OZ,2OZ
- Surface treatment:HASL LF,ENIG ect
- Soldermask:Green,Black,Yellow,Blue ect
- silkscreen:White,Black
- D.K: 2.2 to 10.6
- D.F:/
- Min trace/gap:3mil
High quality pcb for soldering / prototype pcb assembly
Product Description
Service:PCB Manufacturing / PCB assembly / components sourcing
PCBA Capability
*SMT & PTH Assembly
*Fine pitch BGA,QFN,Smallest 0201 package
*Bonding assembly
*AOI & X-Ray inspection
*5-500sets of quick turn PCBA ready in 5-15 days
*8000-10000pcs soldering pins per hour
*Components details:
--Passive Down to 0201 size
--BGA and VFBGA
--Leadless Chip Carriers/CSP
--Double-sided SMT Assembly
--Fine BGA Pitch to 0.2mm(8mil)
--BGA Repair and Reball
--Part Removal and Replacement
*Component package:Cut Tape, Tube, Reels, Loose Parts
Service:PCB Manufacturing / PCB assembly / components sourcing
PCBA Capability
*SMT & PTH Assembly
*Fine pitch BGA,QFN,Smallest 0201 package
*Bonding assembly
*AOI & X-Ray inspection
*5-500sets of quick turn PCBA ready in 5-15 days
*8000-10000pcs soldering pins per hour
*Components details:
--Passive Down to 0201 size
--BGA and VFBGA
--Leadless Chip Carriers/CSP
--Double-sided SMT Assembly
--Fine BGA Pitch to 0.2mm(8mil)
--BGA Repair and Reball
--Part Removal and Replacement
*Component package:Cut Tape, Tube, Reels, Loose Parts
How to Ensure Solder Joint Quality?
The advantages of using AOI and X-ray inspection for solder joint quality should probably be weighed when doing the PCB assembly process.
1.Manual Visual Inspection:These should be done at virtually every stage of the assembly process and provide a quick assessment of the success of the previous step.
2.AOI(Automated Optical Inspection):This testing method is employed during fabrication and assembly and provides resolution greatly superior to visual inspection for checking solder joint volume.
3.X-Ray:This method allows for inspection of the board’s interior.As such,vias for BGAs and other packages where pads can not be seen from the surface can be examined
Customers Solutions:
Provide reasonable suggestion with the pcb files design and bom list choice to Enhance the competitiveness of product in the markets.
Provide reasonable suggestion with the pcb files design and bom list choice to Enhance the competitiveness of product in the markets.
Customers Service:Every feedback to our service department will be dealt with in time.
FAQ
*What service do you have?
Answer:We provide turnkey solution including PCB Clone,PCB fabrication,PCB Assembly,testing and other value-added service.
*What are the main products of your PCB/PCBA Services?
Answer:Medical PCBA / Telecom / Power supply / Led lighting / consumer electronics / Instrument equipment ect.
*Can we inspect quality during production?
Answer:We are welcome and transparent on each production process.
*How can you ensure our information being safe and not let third party find out our design?
Answer:We are willing to sign NDA file to follow the local law in your country and promise to keep our customers data in high confidential level.
*Do you have any minimum order quantity (MOQ)requirement?
Answer:We do not have MOQ requirement,We can support your projects stating from prototypes to mass productions.
Answer:We provide turnkey solution including PCB Clone,PCB fabrication,PCB Assembly,testing and other value-added service.
*What are the main products of your PCB/PCBA Services?
Answer:Medical PCBA / Telecom / Power supply / Led lighting / consumer electronics / Instrument equipment ect.
*Can we inspect quality during production?
Answer:We are welcome and transparent on each production process.
*How can you ensure our information being safe and not let third party find out our design?
Answer:We are willing to sign NDA file to follow the local law in your country and promise to keep our customers data in high confidential level.
*Do you have any minimum order quantity (MOQ)requirement?
Answer:We do not have MOQ requirement,We can support your projects stating from prototypes to mass productions.
